ZB-D pipeline gear pump
Pipeline gear pump ZB-D series pipeline pump, also known as gear pipeline pumps, is mainly used for smooth flow of pressurized polymer layer of high-viscosity transmission medium. This series of melt pump adopts conduction oil heating, and applies to PET, PBT, PA, PC, PS, SAN, ABS, HIPS, PP, PE, POM, etc.

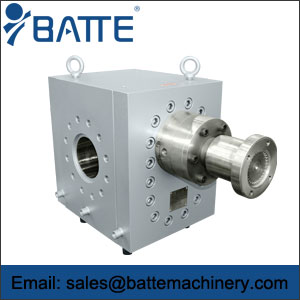

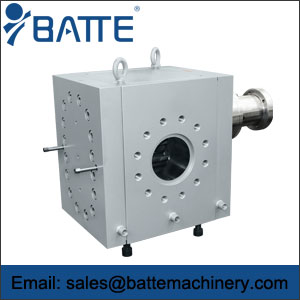

Pipeline gear pump   gear pipeline pump

Pipeline gear pump ZB-D details:
ZB-D series pipeline pump is mainly used for stabilizing, pressurization and transportation of medium or high viscosity medium from the polymer flow layer.
Batte pipeline pump is single stage single suction centrifugal pump one, is a vertical structure, its import and export in the same straight line, and the import and export of the same caliber, rather like the section of pipe, the pipe can be installed in any position of it named pipeline pumps (aka booster).
Features: single suction single stage centrifugal pump, it's the same and in the same line, and the axis perpendicular to the centerline, the vertical pumps.
Sealing form: oil seal, gasket seal, threaded seals, labyrinth seals, packing and dynamic seals, mechanical seals.
Application: suitable for PET, PBT, PA, PC, PS, SAN, ABS, HIPS, PP, PE, POM and other process

Pipeline pump for hot water temperature corrosive chemical pump. The extrusion gear pumps are energy efficient, reliable performance. Seal mechanical seals into mechanical seals combinations, using carbide materials, wear-resistant seal. Can effectively extend the service life of mechanical seals.

ZB-D series pipeline pump is mainly used for stabilizing, pressurization and transportation of medium or high viscosity medium from the polymer flow layer. This series of melt pump adopts conduction oil heating, and applies to PET, PBT, PA, PC, PS, SAN, ABS, HIPS, PP, PE, POM, etc.

Gear pipeline pumps technical parameter:
Material for Melt Pump Body: High temperature tool steel, chromenickel steel or stainless steel
Material for Gear: M2 Steel (Optional), stainless steel
Material for Sliding Bearing: High Temperature Tool Steel or Stainless Steel
Gear Tooth Type: straight gear, helical gear, herringbone gear
Shaft Sealing: Spiral sealing, packing sealing, spiral and packing sealing or other combined sealing
Heating System: Heating Medium or Conduction Oil Heating
Model/Volume Range: 0.5CC - 12000CC, 0.5cm3/rev - 12000cm3/rev

Pipeline gear pump ZB-D Operating Parameter:
Viscosity: ≤40000 Pa.s
Working Temperature: ≤400℃ (750℉)
Cleaning Temperature: ≤450℃ (850℉)
Inlet Pressure: ≤12MPa
Outlet Pressure: ≤40Mpa (6,000psi)
Differential Pressure: ≤25MPa

Type
CC/Rev
Capacity (L/H)
Heating power (kw)
Driven system (km)
Pressure
Temperature
ZB-0.2
0.2
0.2-0.6
0.5
0.37




Inlet pressure: ≥0Mpa


Exit pressure:
≤35Mpa





Operating temperature:≤350℃


Clearing temperature:≤450℃








ZB-1
1
1-3
1
0.5
ZB-2
2
2-6
1
0.75
ZB-5
5
5-15
1
1.1
ZB-10
10
10-30
1
1.5
ZB-20
20
20-60
2
2.2
ZB-31.5
31.5
30-90
2
3
ZB-50
50
50-150
2
4
ZB-100
100
100-300
3
5.5
ZB-150
150
150-450
4
7.5
ZB-200
200
200-600
4
11
ZB-250
250
250-750
5
15
ZB-315
315
300-900
6
18.5
ZB-400
400
400-1200
8
22
ZB-500
500
500-1500
10
30
ZB-630
630
600-1800
12
37
ZB-800
800
800-2400
15
45
ZB-1000
1000
1000-3000
18
55
ZB-1500
1500
1200-4500
20
75

Batte is one of professional gear pump manufacturers located in in China.
