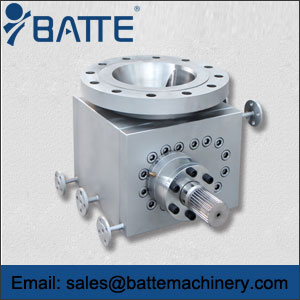

ZB-F gear pump for reaction kettle

Gear pump for reaction kettle, which also called discharge gear pumps for reactor, can accurately controll molten material displacement by the pump speed, and is mainly used for transporting medium or high viscosity medium out of the vacuum reaction kettle.

Gear pump for reaction kettle   discharge gear pumps for reactor

Discharge gear pumps for reactor applications:
ZB-F series gear pump for reaction kettle is mainly used for transporting medium or high viscosity medium out of the vacuum reaction kettle. On basis of large suction inlet flange design, the high viscosity medium is able to absorb inside under vacuum conditions. This series of melt pump is primarily applicable for ABS, PS, PC, PET, SAN, PP, PE Biopolymers, etc.

Metering pump is mainly used in chemical engineering, chemical fiber, spinning, oil, food industry, biology, medical, and so on. Such as dacron, acrylic fibers, high strength polyethylene, resin, medical, binding agent, polyol, oil and other industries. With the increasing development of mechanical industries, metering pump is increasingly accepted and applied by domestic.

Discharge gear pumps for reactor technical parameter:
Material for Melt Pump Body: stainless steel, carbon steel, hatelloy, monel metal
Material for Gear: M2 Steel (Optional), tool steel, nitrided steel, special materials or coating
Gear Tooth Type: straight gear, helical gear, herringbone gear
Material for Sliding Bearing: Tool steel, titanium tantalum alloy, silver nickel, special materials or abrasion-resistant coating
Shaft Sealing: Mechanical sealing, packing and spiral packing, combined
Heating System: Conduction oil heating or biphenyl gas heating
Model/Flow Range: 0.5CC - 12000CC, 0.5cm3/rev - 12000cm3/rev

ZB-F gear pump for reaction kettle operating parameter:
Viscosity: ≤40000 Pa.s
Working Temperature: ≤400℃ (750℉)
Cleaning Temperature: ≤450℃ (850℉)
Inlet Pressure: vacuum – 1.5MPa
Outlet Pressure: vacuum – 1.5MPa
Differential Pressure: ≤25MPa

Pump Model
Pump Volume (CC)
Driven Power (kw)
Heating Power (kw)
Working Temperature
Working Pressure
ZB-0.6
0.6
0.37
0.5







≤400℃(750°F)




Outlet Pressure:  ≤ 40Mpa(6,000psi)

Outlet Differential Pressure: ≤ 275bar

ZB-1.2
1.2
0.75
0.5
ZB-2
2
0.75
1
ZB-5
5
1.1
2
ZB-10
10
1.5
2
ZB-20
20
2.2
2
ZB-31.5
32
3
2
ZB-50
50
4
3
ZB-100
100
5.5
4
ZB-150
150
7.5
5
ZB-90/90
200
11
6
ZB-100/100
250
15
8
ZB-100/100
315
18.5
8
ZB-115/115
500
22
12
ZB-130/130
800
30
15
ZB-160/160
1200
37
20
ZB-180/160
2500
45
24
ZB-180/180
3200
55
24
ZB-224/224
6000
75
30
