batte melt pump

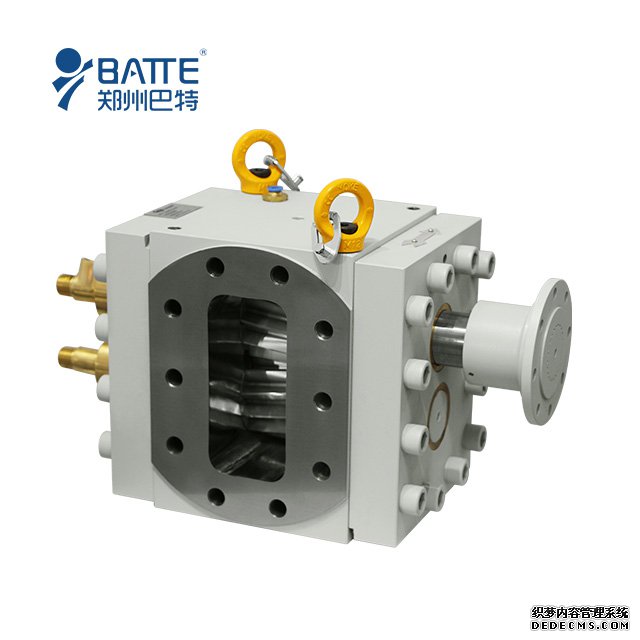

batte rubber melt pump

product description:

The rubber melt pump is used for the elastomer and the easily degradable plastic extrusion system. This type of pump adopts the special internal structure and has an efficient self-cleaning function. It is suitable for the extrusion of the rubber elastomer. It is usually installed on the outlet of the extruder and the die Boost pressure regulator between the first measurement.
rubber extrusion pumprubber extrusion gear pump

The main application of rubber melt pump

PVC, BR, CR, EPDM, NBR, SBR, natural rubber, other easily degradable materials

Rubber melt pump main features:

1) Can be used in high pressure (40MPa), high viscosity (40,000Pa • s) conditions;

2) high finish, almost mirror, adapted to heat-sensitive materials;

3) Precision structure, high temperature control accuracy.

4) optimize the flow and lubrication systems, with efficient self-cleaning function, no residual material, no dead ends.

Rubber melt pump Technical parameters:

Transmission medium viscosity: 1 ~ 40,000Pa • s (1,000 ~ 40,000,000cP)

Entrance pressure: 0 ~ 30MPa

Export pressure: 0 ~ 40MPa

The maximum pressure: 25MPa

Operating temperature: ≤ 350 ℃

The main structure of rubber melt pump:

Pump body: nitrided steel tool steel to do mirror surface treatment

Gears: Toothed-tooth or helical gear / special alloy mirror treatment

Bushings: Tool Steel / Special Alloy

Heating method: circulating water heating

Cooling method: shaft cooling system

Shaft: Dual-axis drive with water cooling

Shaft seal: spiral discharge

Specifications / flow range: 31.5CC-800CC

Rubber melt pump Installation:

ZB series melt pumps can be installed in a variety of ways, the pump input shaft can be horizontal or vertical layout (up and down can be); Drive system generally include: motor, reducer, universal coupling, pump connection Head, reducer connector first class;
