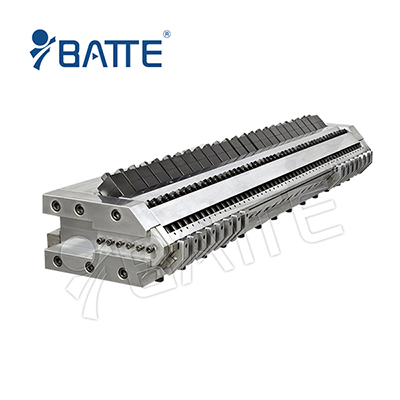

Plastic Sheet Die

Plastic Sheet Die

Custom Plastic Sheet Die die cutting forces a flat plastic sheet (or the flat edge of a 3-dimensional part) against a cutting edge formed into a die. The result is a plastic piece shaped like the die.


Plastic Sheet Die is normally faster and more cost-effective than other cutting or trimming processes such as routing. The trade-off is in the dimensional tolerances and edge finish of the part. A nominal tolerance for die cutting is +/- .020 inch, and it does not always produce a smooth, finished edge like routing. Routing tolerances can be significantly tighter, routinely achieving +/- .005 inch.

Typically, material being die cut is 1/8-inch thick or less.

Midland has used custom Plastic Sheet Die for such applications as:



Flat Shapes



Midland can produce custom Plastic Sheet Die parts from a wide variety of thermoplastic materials, although more brittle plastics such as acrylic may not yield a satisfactory result. We most frequently die cut these materials:


Item Specification
Die steel P20/5CrNiMo
Width of the die 500mm-5000mm
Thickness of the product 0.2-2mm
Choked flow rope 90°
Way of flow passage clothes rack type
voltage 220V/50hz
Heating type heating inside
Heater element stainless steel heating rod
Mode of connection closed cycled connection
Fastening piece 12.9 high strength
Precision of polishing Polishing precision of the stream surface of the die lip 0.03-0.04(μm)other parts is 0.04-0.05(μm)
Galvanization  the stream surface of the die head are treated by chrome treatment. Thickness 0.03-0.04(μm),hardness: 60-65Rockwellc,the chrome treatment thickness of the ektexine is 0.01-0.02mm.
Installation according costumer’s request
Way of charging central ring charging way
